HAROLD
HAROLD is an advanced heterostructure simulator for modeling Fabry-Perot quantum well lasers with near-arbitrary vertical structure and layer compositions. HAROLD also includes a full 3D VCSEL model, taking into account optical, electrical, and thermal effects.
Features
- Advanced laser simulations Fabry-Perot cavity modeling in 1D (Y) and 2D (YZ);
- Self-consistent solution of Poisson Equation With drift-diffusion, capture/escape models for electrons and holes;
- Full XY or YZ solution of the heat flow equation Power dissipation: Joule, non-radiative recombination, free carrier absorption, excess power distribution, mirror scattering and mirror absorption;
- 2D+Z waveguide mode solver Used to compute confinement factor and mode gain for TE and TM modes;
- Capture/Escape balance equations Used to describe thermal equilibrium between confined and unconfined carriers in QW regions;
Pulsed (isothermal) or CW (self-heating) conditions;
Harold XY: laser cross-section modelingGain curves export for laser / SOA modeling;
Heat-sink overhang in 2D (YZ) calculations;

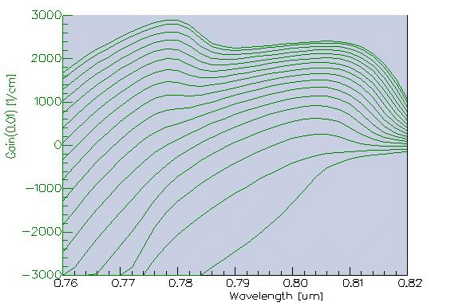

- Gain model for QW lasers Function of wavelength, carrier concentration and temperature;

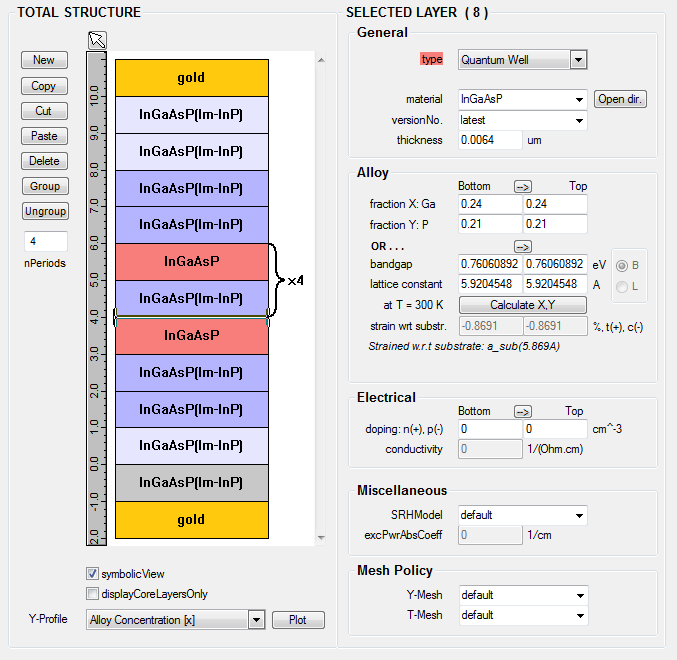

- Support of multiple QW structures (MQW) Supports non-identical wells Schrödinger Equation solved over the whole MQW region to account for coupling between wells Wavefunction overlaps included in recombination and gain model;
- VCSEL Built in full-vector 3D cavity mode solver for multiple modes;
- Built-in far-field calculator Full 3D thermal heat-flow model;
- Miscellaneous Models effect of strain (in QW and barrier layers) on the QW levels;
Parabolic band approximation;
Can compute both TE and TM mode gain;
Self Consistent Poisson/drift-diffusion electrical model;
Includes Shockley-Read-Hall, Auger, stimulated & spontaneous recombination;
Non-injecting and absorbing mirrors;
Material database of quaternary alloys; materials such as AlGaAs, InGaAsP, InGaAlAs, gold, copper, etc.;
Applications
- FP Quantum Well lasers
- Ridge waveguide lasers
- SOI hybrid lasers
- VCSELs
Examples
- High power Fabry-Perot laser
-
SOA (Link to PICWave)
-
SOI/III-V Hybrid Laser
-
Electro-Absorption Modulators (QCSE)
VCSEL Module
The VCSEL Module allows the calculation of multiple optical cavity modes, electrical drift diffusion, heat flow, and electron-photon interactions in a full 3D model.
Building on Photon Design’s decades of experience the VCSEL module provides a fully integrated design environment for the variety of the VCSEL types being used today, including QW materials, current blocking apertures, and more.
